HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Dom ProduktyCysterny, ciężarówki i naczepy

35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks

Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Im Online Czat teraz

35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks

35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks
35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks 35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks 35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks 35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks 35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks

Duży Obraz :  35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks

Szczegóły Produktu:

Miejsce pochodzenia: Suizhou, Chiny
Nazwa handlowa: CLW
Orzecznictwo: CCC,ISO,BV,SGS
Numer modelu: CLW55F3

Zapłata:

Minimalne zamówienie: 1 jednostka
Cena: negotiable
Szczegóły pakowania: Nagie opakowanie, Ro-ro, statek masowy
Czas dostawy: 30-35 dni
Zasady płatności: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply: 500 jednostek/miesiąc
Szczegółowy opis produktu
Kod projektowy: Totalny standard Typ zaworu wylotowego: API lub styl francuski
Liczba przegródek: 2 lub 3 lub 4 lub 5 lub 6 lub 7 lub 8 Rozmiar zaworu wylotowego: 3 cale lub 4 cale
Nr osi: 2 lub 3 lub 4 Marka osi: BPW lub Fuwa lub Hj
Marka opon: Trójkąt lub podwójna moneta Rozmiar opony: 12r22,5 lub 315/80r22,5 lub 385/60r22,5
Zawory odcinające sterowane pneumatycznie: Tak Tylna drabina: Tak
Górna szyna bezpieczeństwa: Tak Wskaźnik poziomu: Fakultatywny
zamek przeciwkradzieży: Fakultatywny Dodatkowa cysterna z paliwem: 500 litrów lub 1000 litrów są opcjonalne
Stojak na koło zapasowe: Tak
Podkreślić:

35cbm Fuel Delivery Tanker

,

Q345 Steel Fuel Delivery Tanker

,

CCC Tanks Trucks And Trailers

35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks
1. CLW GROUP ’s full-canopy tank design helps to keep your delivery drivers out of the weather and elements during delivery.  Equipment area provides easy access from both sides of the truck.

2. Standard tank capacities from 2,400 – 5,500 gallons;
3. custom sizes available starting at 1300 gallons up to 7,500 gallons
4. Top loading or bottom loading (optional)
5. Single or dual delivery systems
6. Common applications: heating oil, commercial and agricultural deliveries, fleet fueling, oil field deliveries and lubricants



35m3 chemical tanker semi trailer
DIMENSIONS & WEIGHT
Overall Dimensions ( L * W * H ) 11200 * 2500 * 3700 mm
Volume

35 m  (35,000 Liters)

MAX. GVW 40000 kg
Kerb weight 10000 kg
Pay load 30000 kg
Tanker
Tank Material Mild steel Q345, inner is polyurethane epoxy, anti-corrosion. And middle is rock wool insulation. Outer is stainless steel cover plate.
shape Trapezoid shape
Thickness of shell MS 5 mm
Thickness of dish MS 6 mm
Working temperature - 20 °C to + 70 °C
Compartments The tank is divided in 1 room. Opting more
Manhole 2 sets of DN500 mm / SS304, with breathe valve
Unloading valve 2 sets of DN80 fixed at bottom of tank
Pipeline at bottom of tank 4" seamless steel tube Q345
Labeling system Oil type indication
Anti-static electricity Pulling, wire carrier, sheet copper (6 sheet standard layout)
Running Gear
Axle FUWA 3-pcs * 13 T axles, double wheel.
Tire & Rim 12-pcs * 11.00R22.5 tyres (opting different brand tire)
12-pcs * 8.25R22.5 rim (opting steel rim or aluminum alloy rim )
Suspension Mechanical suspension (opting air suspension)
King pin JOST C200 2.0" 50 # kingpin (50#) opting, 3.5" ( 90 # )
Landing legs 1 pair . JOST
Air tank 2 set
Spring brake chamber 2-pcs T3030, 2-pc T30
Air connector 1 set stander air connector
Valve 1 pc WABCO ABS
Electrical system Complete electrical system with 7 socked . 24 V.
One set of LED standard lambs; One set of standard cable.
Painting

One primer +final painting
All steel parts are sand blasted before painting. Anti-corrosion.
Primeer, finished urethane paint.
All painting are according to customer's requirement.

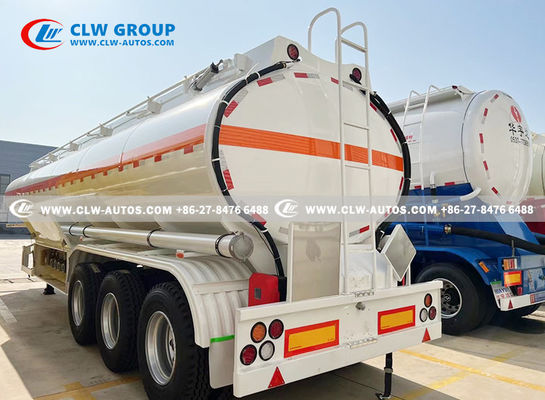

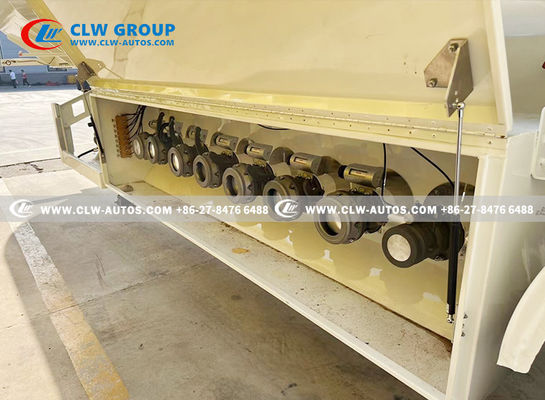

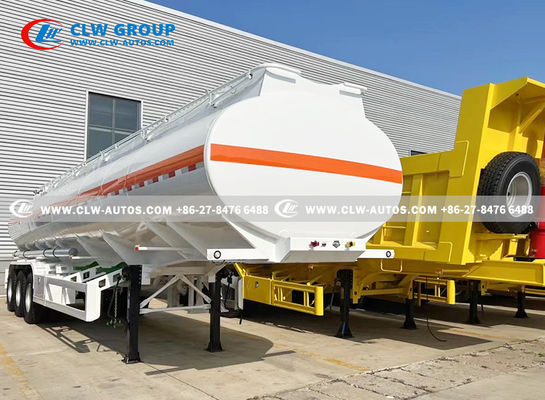

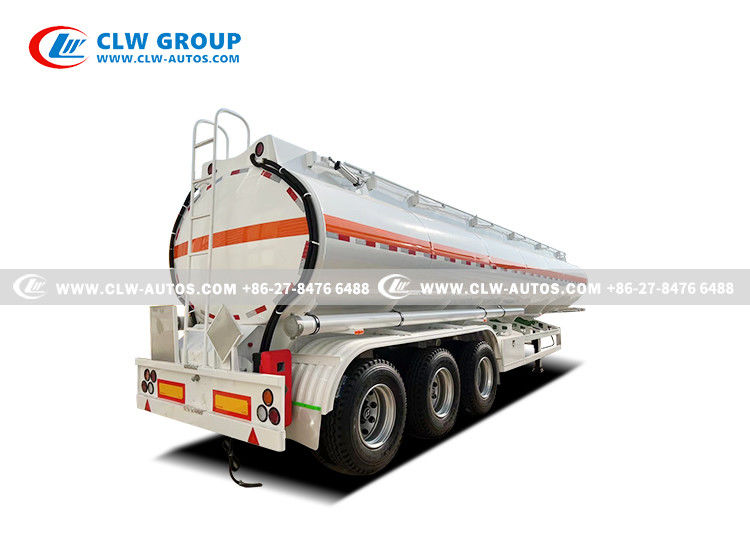

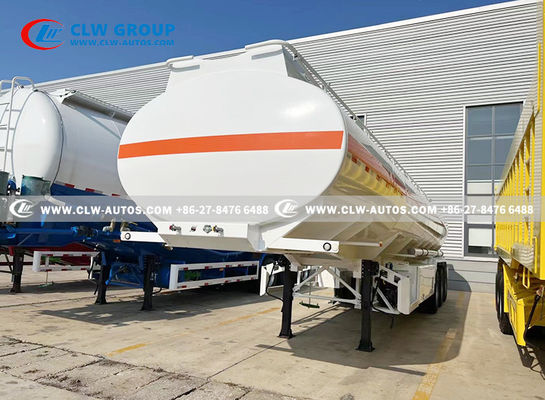

Reference Photos



35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks 0


35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks 1


35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks 2

Sales Service



① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


35cbm Fuel Delivery Tanker 9247 Gallon 7 Compartment Of Oil Tanks 3


FAQ



Q1: What kinds of fuel tank trailer I can order from your company?

A: We can supply various sizes of fuel tank trailer from30-50tons,etc.



Q2: What's the material of your fuel tanker?

A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.



Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?

A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
