Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank

Duży Obraz : Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	CLW / Chengli
Orzecznictwo:	CCC,ISO,
Numer modelu:	CLW5042TSLB5

Zapłata:

Minimalne zamówienie:	1
Cena:	negotiable
Szczegóły pakowania:	Naga paczka z woskiem
Czas dostawy:	20-30 dni
Zasady płatności:	L/C, D/A, D/P, T/T
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Materiał pudełkowy:	Stal węglowa Q235B	Marka ciężarówek:	Isuzu
Silnik ciężarówki:	ISUZU Diesel 120 KM	Skrzynia biegów:	MSB 6 do przodu i 1 do tyłu
Opona:	7.00-16, 7.00R16	Oś:	3 tony z przodu i 4,8 tony z tyłu
Zamiar:	Zamiatanie dróg	zamiatarka:	4 sztuki, 2 sztuki z każdej strony
Zbiornik na wodę:	1,5 metra sześciennego	Zbiornik na śmieci:	3,5 metra sześciennego
Podkreślić:	street sweeper vacuum truck , mechanical sweeper truck

Small Street ISUZU Road Sweeper Truck with Vacuum Sweeping Equipment & Water Tank

Product Description

Small Street ISUZU Road Sweeper Truck with Vacuum Sweeping Equipment & Water Tank

Best Choice for Road Sweeping, both Garbage Tank & Water Tank
Garbage Tank: DN100 Suction Hose with 2 wheels Sunction Pan.
Water Tank: with Water Filter & Level Gauge.
Auxiliary JAC Engine 77HP to Supply Power for the whole system.
Wind Suntion System to suck up the garbage.
Sweeping System: 2 Brush at each side

Specifications of Small Street ISUZU Road Sweeper Truck

ISUZU Road Sweeper Truck
Item No.		Parameters
Overall Dimension		6830 x 2210 x 2650 mm
Curb Weight		5700 kg
Loading Weight		3000 Kg
Wheel Base		3800 mm
Front/rear Tread		1095 / 1475 mm
Approach/Departure Angle		21 / 14 degree
Cabin		ISUZU 600P, Left Hand Driving, with Air Conditioner,
Engine		ISUZU 4KH1-TCG40 Diesel Engine, 120HP, 3400RMP, 2.999Liter, 4 Cylinder in Line, Turbo Charge,
Gear Box		ISUZU MSB Manual, 5 Forward Gear & 1 Reverse Gear,
Brake		Oil Brake with Vacuum Pump
Steering Gear		Hydraulic Power Steering
Tire		700-16, 6 Piece with 1 Spare
Fuel Tank		100 Liters
Sweeping System
Dust Bin	6 m3		Water Bin	2 m3
Material of Both Bin	Stainless Steel		Engine	JMC JX493G3, 77HP,
Brush Quantity	4 Pieces		Brush Diameter	900mm
Work Width	3.0-3.5 meters		Working Speed	3-15 km/h
Dust Bin Tipping System	Hydraulic Tipping		Dust Bin Tipping Angle	More than 40 degree
Dust Cleaning Percentage	90-95%		Maximum Capacity	45000 m2/h
Sucking Object Diameter	less than 50mm (coal)		Working Duration	4 hours
Function Specification: 1. All Controlling System are Inside the Cabin Easy for Handling. 2. All Stainless Steel Dust Bin & Water Bin. 3. Separated Engine Support Hydraulic Pump & Suction Machine. 4. Hydraulic Pump Control Left & Right Brush Can Work Separately or Simultaneously. 5. Left & Right Brush System are Patented by Chinese Government for Avoiding the Obstacle. 6. Major Hydraulic Parts are Imported Good Quality parts. 7. Water Spraying System to Control Dust on Road.

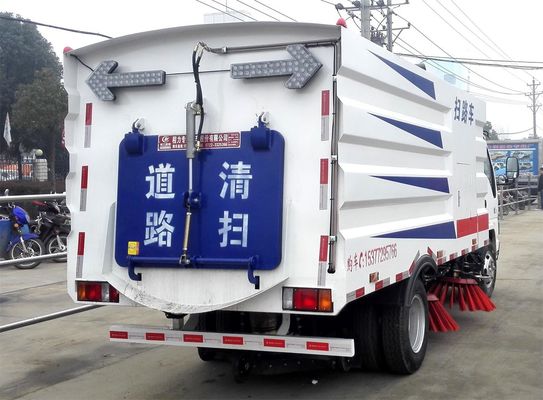

Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank 0

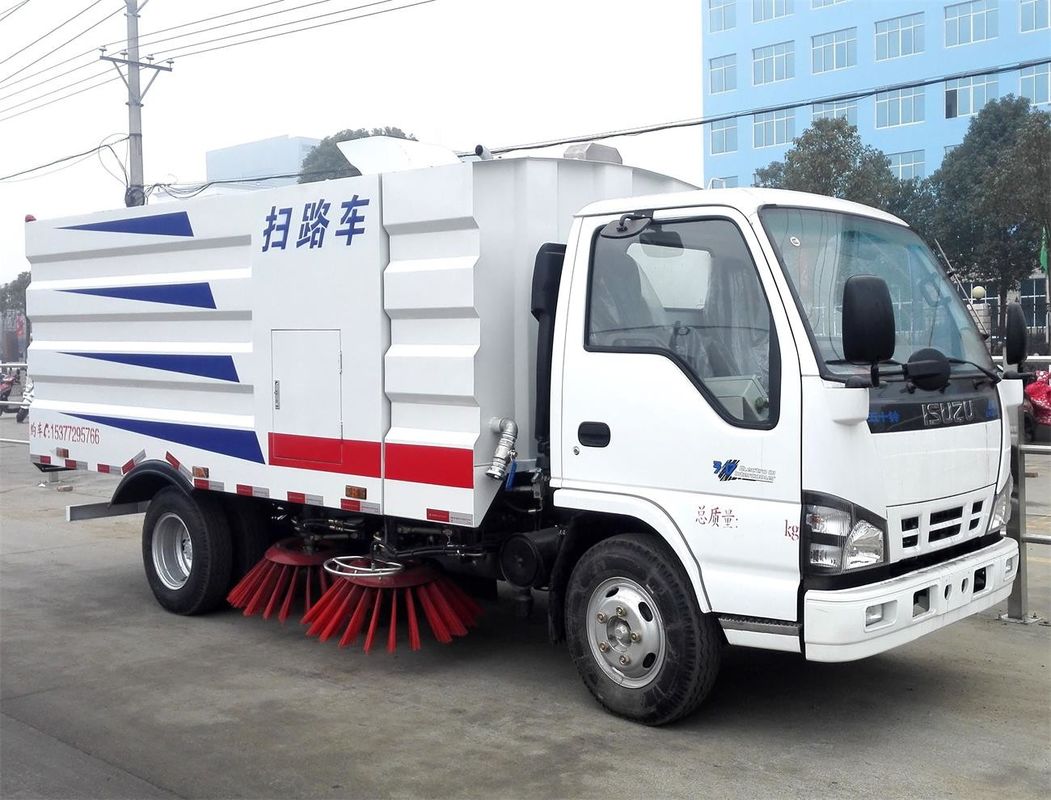

Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank 1

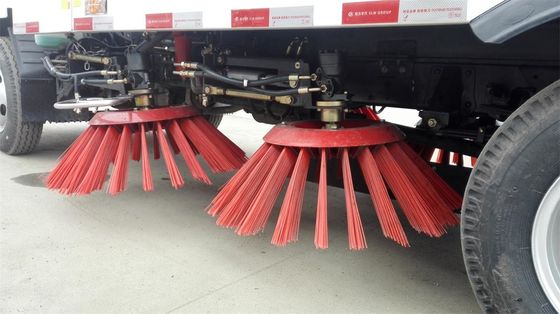

Diesel Small Street Vacuum Truck , ISUZU Vacuum Road Sweeper With Water Tank 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen

FAQ

Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
