Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

Duży Obraz : Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	BV, SGS, CCC
Numer modelu:	CLW0571BP

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, Ro-Ro
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

marka:	Znane chińskie marki, takie jak Sinotruk Howo, CAMC, Shacman, Foton, North-benz, JAC, ISUZU itp.	Pojemność ładowania:	30 ton, 40 ton, 50 ton
Typ podnoszenia:	Wywrót do przodu, wywrót do środka	Marka butli z olejem:	Międzynarodowa marka HYVA lub chińska marka
Materiał wywrotki:	Wysokiej jakości Q345B	Grubość wywrotki:	Dół 10 mm, bok 8 mm lub na życzenie klienta
Kolor:	Biały, czerwony, żółty, zielony lub na życzenie klienta	Logo i malowanie:	Zgodnie z życzeniami klienta
Czas dostawy:	30-35 dni roboczych	Gwarancja:	1 rok
Podkreślić:	40T Tipper Dumper Truck , Sinotruk Howo 6x4 Tipper Dumper Truck , Howo 6x4 Heavy Duty Dump Truck

Brand New Sinotruk HOWO 40tons 6X4 Dump Truck Tipper Dumper Truck

Product Description

1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.

Product Specification

Cabin		HOWO 76 Standard Cab With one sleeper, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	(L x W x H) mm			886024963450
	Wheel base (mm)			3825+1350
	Wheel track (front/rear) (mm)			1500/1525
	Approach/Departure angle(°)			19/24
Weight in KGS	Tare Weight				12390kg
	Loading Capacity				40000kg
	Front axles loading capacity				HR9 1x9000kg
	Rear axles loading capacity				HC16 2x16000kg
Max. driving speed(km/h)						85
Engine			Brand				Sinotruk Howo
			Model				WD615.47
			Type				4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
			Horse Power(HP)				290HP
			Emission standard				Euro 2
Gearbox			HW19710, 10 forwards & 2 reverse
Clutch			Reinforced diaphragm clutch, diameter 430mm
Steering Gear			ZF 8118, power steering, hydraulic steering with power assistance
Fuel tank (L)			300
Tire			12R22.5 tubeless tire,10 pieces with one spare
Brakes			Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake

Reference Photos

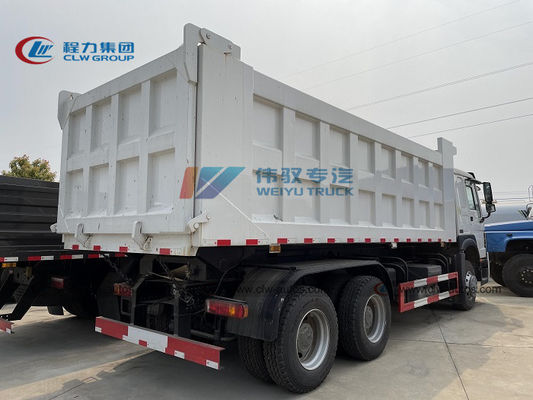

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 1

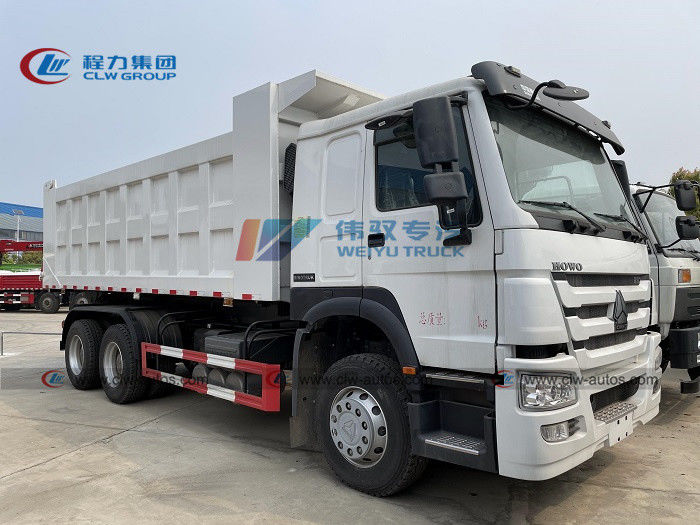

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 2

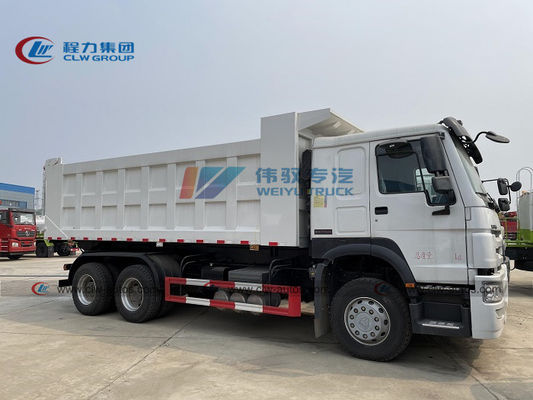

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 3

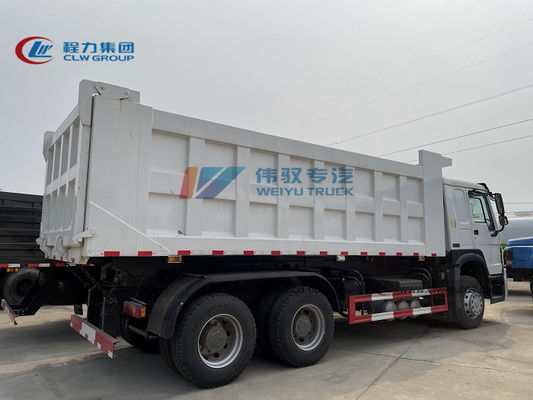

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 4

Other Related Dump Trucks

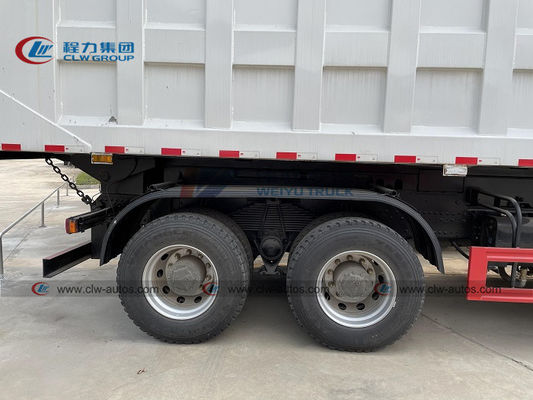

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 5

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.

FAQ

Q1: What kinds of dump trucks I can order from your company?
A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
