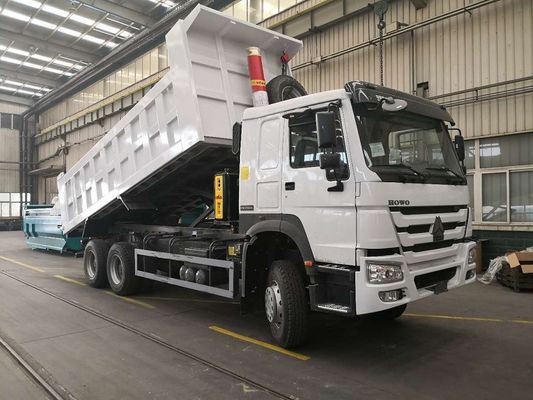

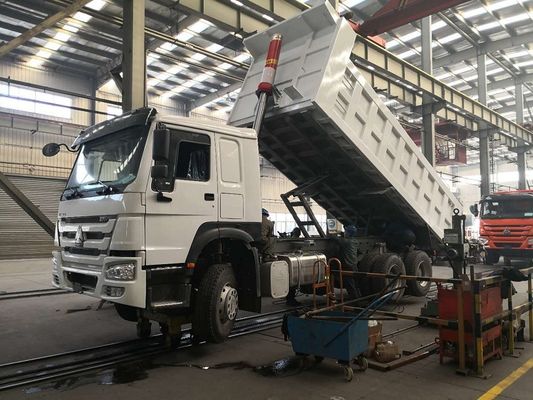

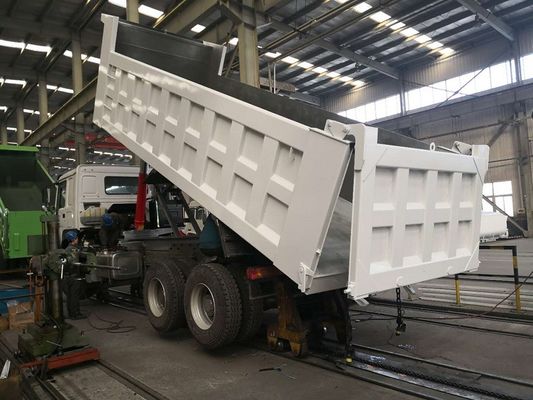

Construction Heavy Duty Custom Dump Trucks , 6 X 4 40t Large Bottom Dump Truck

Duży Obraz : Construction Heavy Duty Custom Dump Trucks , 6 X 4 40t Large Bottom Dump Truck

Szczegóły Produktu:

Miejsce pochodzenia:	SUIZHOU, CHINY
Nazwa handlowa:	CLW
Orzecznictwo:	BV,SGS,CCC
Numer modelu:	CLW3250

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	nagi, woskowany, masowiec, ro-ro
Czas dostawy:	30 dni od otrzymania wpłaty na konto
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

marka:	Sinotruk Howo, CAMC, Shacman, Foton, North-Benz, JAC, ISUZU	Pojemność ładowania:	20t, 20ton, 20ton, 25t, 25ton, 25ton, 30t, 30ton, 30ton, 40t, 40ton
Typ podnoszenia:	Wywrót do przodu, przewrót środkowy	Marka butli z olejem:	HYVA lub chińska marka
Grubość wywrotki:	bok 6mm, dół 8mm lub bok 8mm dół 10mm	Materiał wywrotki:	Q345/B
Kolor:	Biały, czerwony, żółty na żądanie	SILNIK:	266 KM, 290 KM, 336 KM, 371 KM
Podkreślić:	10 wheel dump truck , heavy equipment dump truck

Chinese Heavy Duty Tipper Sinotruk Howo 6X4 40ton 40t New Dump Truck

Product Description

1) Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,ISUZU,FOTON...

2) Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand

3) high tensile steel for dumper materia,4mm,6mm,8mm or 10mm

4) Used in construction site for transportation of mineral,stone,sand and so on.

Specifications of Sinotruk Howo 6X4 40ton 40t New Dump Truck

Cabin		HOWO 76 Standard Cab With one sleeper, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	(L x W x H)mm						8860×2496×3450
	Wheel base (mm)						3825+1350
	Wheel track (front/rear) (mm)						1500/1525
	Approach/Departure angle(°)						19/24
Weight in KGS	Tare Weight					12390
	Loading Capacity					30000kg
	Front axles loading capacity					HF9 1x9000
	Rear axles loading capacity					HC16 2x16000
Max. driving speed(km/h)								85
Engine			Brand						Sinotruk
			Model						WD615.47
			Type						4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
			Horse Power(HP)						371HP
			Emission standard						Euro Ⅱ
Gearbox			HW19710, 10 forwards & 2 reverse
Clutch			Reinforced diaphragm clutch, diameter 430mm
Steering Gear			ZF 8118,power steering, hydraulic steering with power assistance
Fuel tank (L)			300
Tire			12R22.5 tubeless tire ,10 pieces with one spare
Brakes			Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Thickness				Side	6mm in high tensile strength steel Q345/B
				Front	6mm in high tensile strength steel Q345/B
				Bottom	8mm in high tensile strength steel Q345/B
Dump body Size				(L x W x H)	6500mm x 2300mm x 1350mm. 20CBM
Tipping hydraulics				Tipping type	Front tipping type
				Tipping system	Complete set of hydraulics system

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of dump trucks I can order from your company?

A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied dump trucks to any overseas companies?

A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
