Sinotruk HOWO 50 Tons 8*4 Dump Tipper Truck For Mineral Material Transportation

Duży Obraz : Sinotruk HOWO 50 Tons 8*4 Dump Tipper Truck For Mineral Material Transportation

Szczegóły Produktu:

Miejsce pochodzenia:	SUIZHOU, CHINY
Nazwa handlowa:	CLW
Orzecznictwo:	BV, SGS, CCC
Numer modelu:	CLW0571BP

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

marka:	Znane chińskie marki, takie jak Sinotruk Howo, CAMC, Shacman, Foton, North-benz, JAC, ISUZU itp.	Pojemność ładowania:	30 ton, 40 ton, 50 ton
Typ podnoszenia:	Wywrót do przodu, wywrót do środka	Marka butli z olejem:	Międzynarodowa marka HYVA lub chińska marka
Materiał wywrotki:	Wysoka jakość Q345B	Grubość wywrotki:	Dół 10 mm, bok 8 mm lub na życzenie klienta
Kolor:	Biały, czerwony, żółty, zielony lub na życzenie klienta	Gwarancja:	1 rok
Podkreślić:	10 wheel dump truck , heavy equipment dump truck

Sinotruk HOWO 50tons 8*4 Dump Truck for Construction&Mineral material Transportation

Product Description
1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm,6mm,8mm, 10mm or as per client's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, and etc.

Product Specification

Truck Parameters
Chassis Brand			SINOTRUK HOWO
Drive model			8x4
Loading capacity			40-50tons
Overal Dimension			10145x2550x3450mm
Carriage Internal Dimension			5600x2300x1500mm
Dump Van Volume			20m3 ( 16-21m3 for option )
Steel Thickness of Carriage			Bottom 10mm, Side 8mm (As Per Client's Request)
Dumper Material			Q345B
Hydraulic Lift of Carriage			Front Lift (HYVA cylinder or iddle lift for option )
Cabin		Model	SINOTRUK HW76 Lengthen cab
		single bunk, new type seat, adjustable steering wheel, EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, left driving, air conditioner
Engine	Model		D10.38-30
	Manufacturing Company		SINOTRUK
	Maximum output		380HP
	Emission standard		Euro III
	Number of cylinder		6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Transmission			SINOTRUK HW19710 transmission ,10 forward and 2 reverse
Clutch			SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance.
Steering			ZF8118 Steering Gear Box, hydraulic steering with power assistance. (Left hand driving), ( ZF8098 RHD right hand drive for option )
Wheel Base			3800+1350mm
Wheels&Tires			Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. ( tubeless for option )
Front Axle			SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear Axle			SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System		Service brake	Dual circuit compressed air brake
		Parking brake(emergency brake)	spring energy,compressed air operating on rear wheels
Oil Tank		Square type-300L Aluminum alloy fuel tank
Electrics		Operating voltage	24V,negative grounded
		Starter	24V,7.5 Kw
		Alternator	3-phase,28V,1500 W
		Batteries	2x12 V,165 Ah
		Lights	horn,headlamps,fog lights,brake lights,indicators and reverse light.
Performance		Maximum driving speed	75 km/h
		Fuel consumption	35 L/100km
Options		Revolving Light on roof of cab
		RHD right hand drive
		Upper body	bucket shape body for heavy good,big size stones etc
			U shape body bulk cargo , ore and other goods
			Boat type body bulk, muck, geotechnical class
		Tubeless tires	12R22.5 ,315/80R22.5 etc
		Brake water spray
		ABS, EVB engine brake

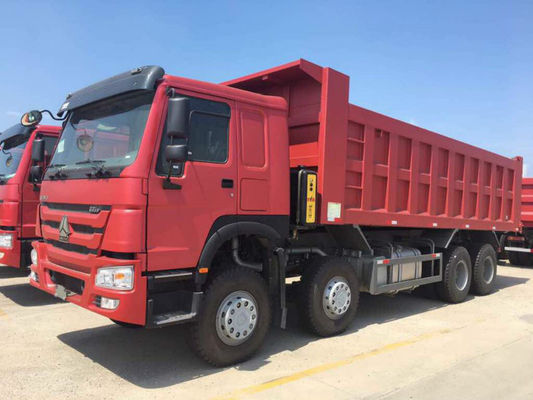

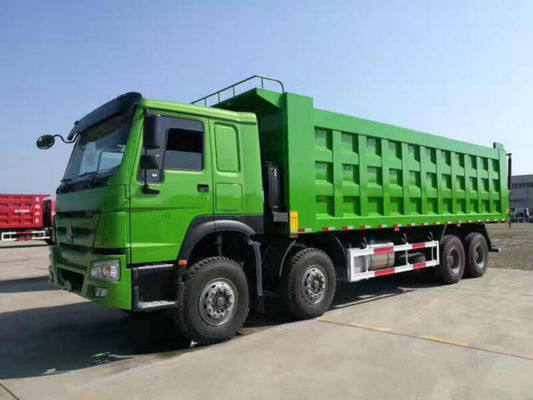

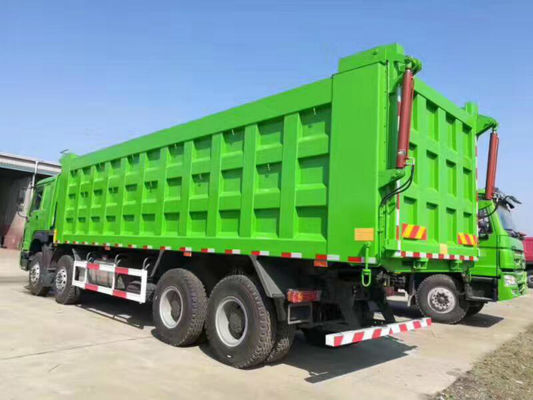

Product Show

Related products

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.

FAQ
Q1: What kinds of dump trucks I can order from your company?

A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
