4X4 Full Wheel Driving 5T Dongfeng Dump Truck With Middle Tipping

Duży Obraz : 4X4 Full Wheel Driving 5T Dongfeng Dump Truck With Middle Tipping

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	CLW / Chengli
Orzecznictwo:	CCC,ISO,
Numer modelu:	CLW5044

Zapłata:

Minimalne zamówienie:	1
Cena:	negotiable
Szczegóły pakowania:	Naga paczka z woskiem
Czas dostawy:	20-30 dni
Możliwość Supply:	600 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

marka:	Dongfeng	SILNIK:	Silnik Chaochai,
Skrzynia biegów:	5 do przodu i 1 do tyłu	Oś:	Przód 2,3 tony, tył 4,5 tony
System napiwkowy:	Środkowe napiwki lub napiwki z przodu	Cylinder wywrotu:	Hyva lub chińska marka
Typ pudełka:	Kształt kwadratowy lub okrągły	Rozmiar pudełka:	4200 x 2100 x 550 mm
Waga ładunku:	3 tony do 5 ton
Podkreślić:	5T Dongfeng Dump Truck , 4X4 Dongfeng Dump Truck , full wheel driving dongfeng tipper truck

4x4 Full Wheel Driving 5Ton Small Dongfeng Dump Truck with Middle Tipping

Product Description

1) Truck chassis brand of Dumper Truck: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model of Dumper Truck: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand of Dumper Truck: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia of Dumper Truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.

Specification of Dumper Truck

Dimension(L×W ×H)(unloaded)(mm)		6300 x 2500 x 3300
Cargo body size (L×W×H)(mm)		4200 x 2100 x 550mm
Approaching angle/Departure angle(°)		19/26
Overhang(front/rear) (mm)		1500/1739
Wheel base (mm)		33000
Max speed(km/h)		75
Curb weight(kg)		(Kg)
Loading Weight(kg)		(Kg)
Engine	Model	CY4103
	Fuel type	Diesel
	Displacement (ml) Power(kw)	3450 88
	Emission	EURO 2
Fuel tanker capacity(L)		150
Transmission	Model	5 Forward & 1 Reverse
Brake system	Service brake	air brake
Brake system	Parking brak	spring energy, compressed air operating on rear wheels
Steering system	Model	Hydraulic
Front axle	Steering with double T-cross section beam
Rear axle	Cast axle housing, central double reduction with differential locks between axles and wheels
Tyre	7.00-16
Electrical system	Battery	12V/165Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V

Product Photos

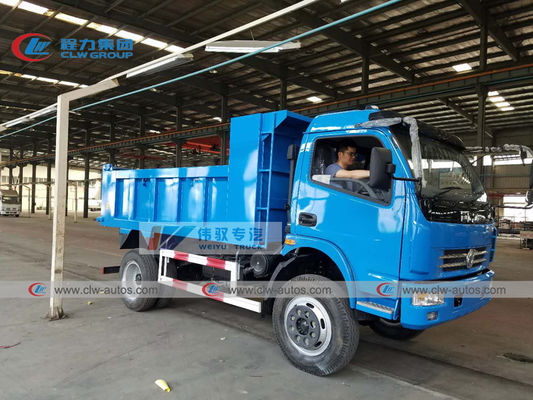

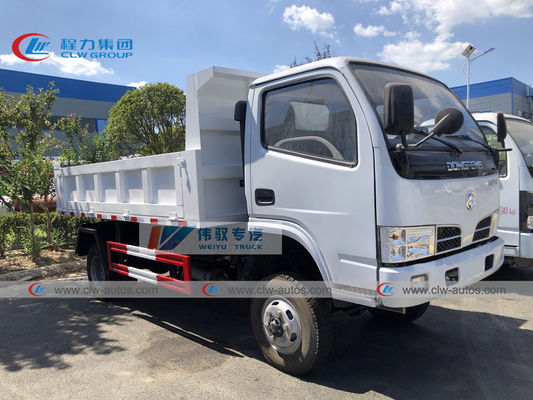

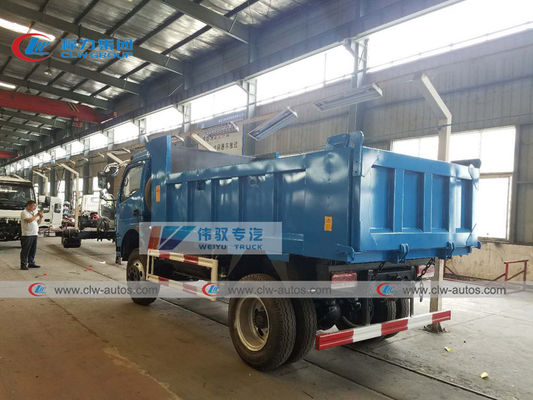

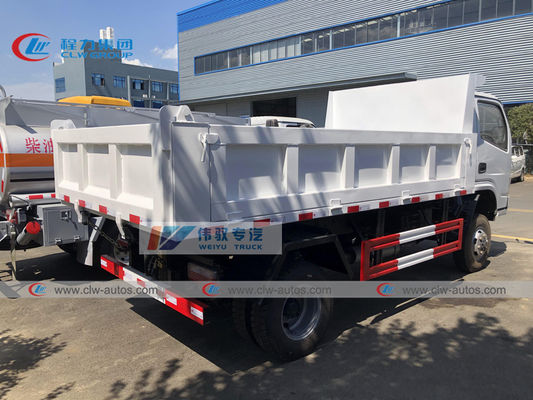

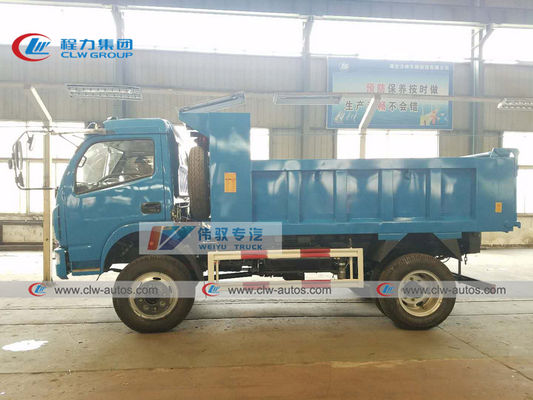

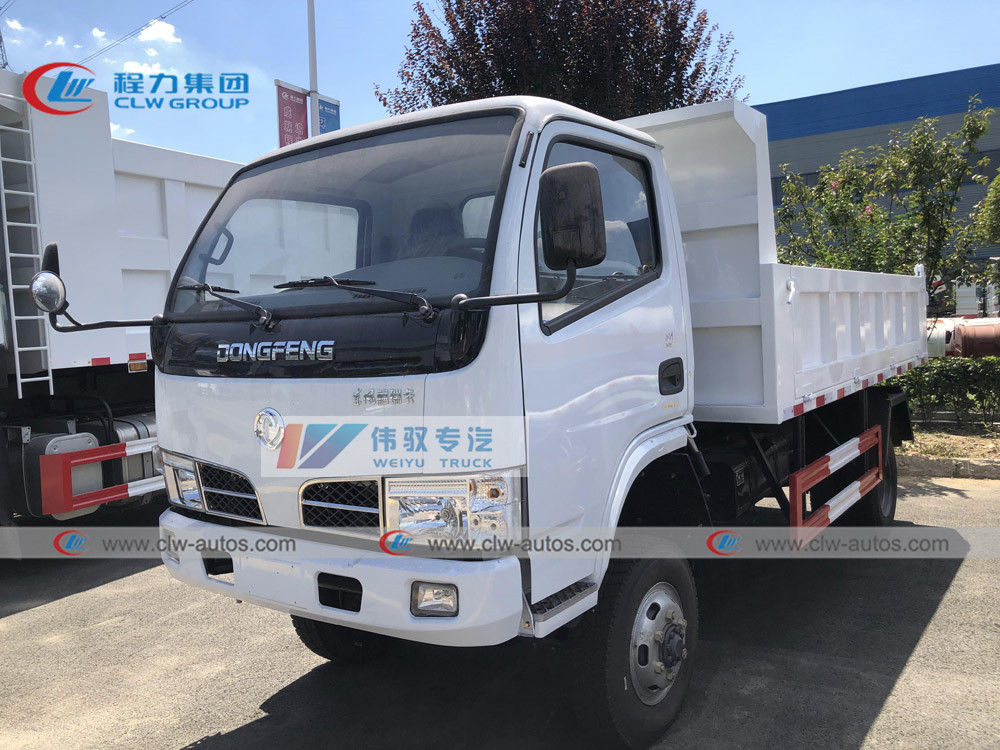

4X4 Full Wheel Driving 5T Dongfeng Dump Truck With Middle Tipping 0

4X4 Full Wheel Driving 5T Dongfeng Dump Truck With Middle Tipping 1

4X4 Full Wheel Driving 5T Dongfeng Dump Truck With Middle Tipping 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of dump trucks I can order from your company?

A: There are various sizes and types of dump trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied dump truck to any overseas companies?

A: Yes,with need of government project,we offered dump trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
