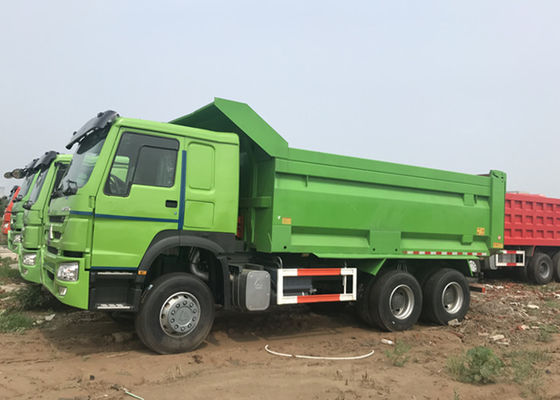

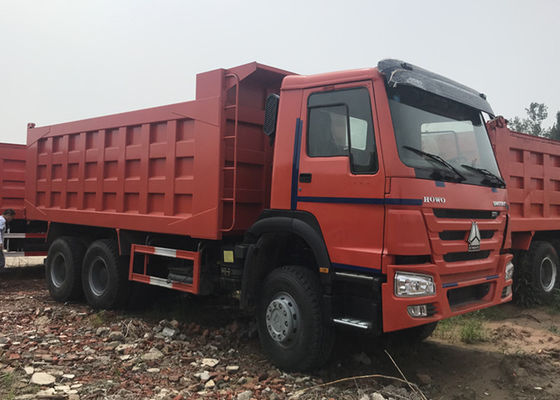

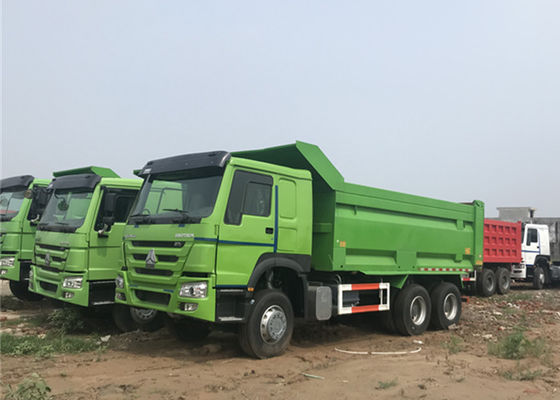

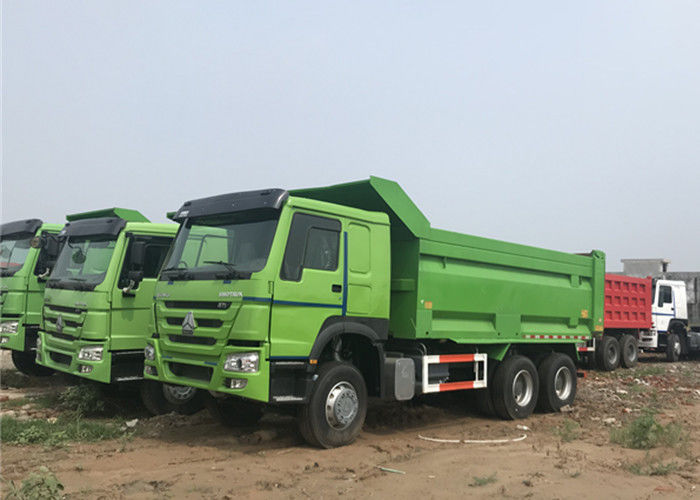

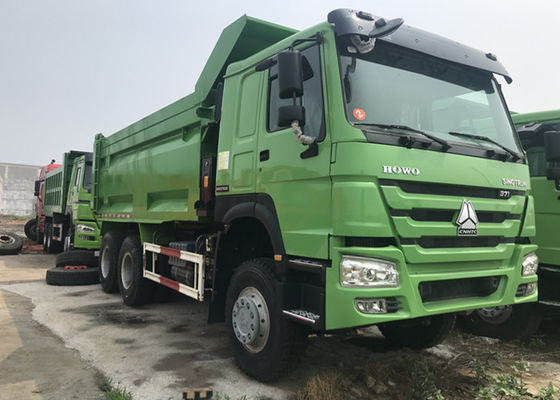

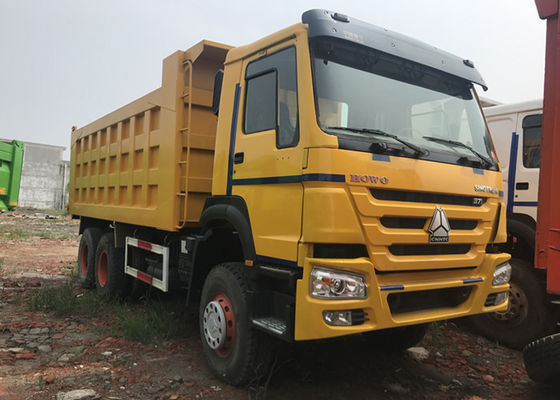

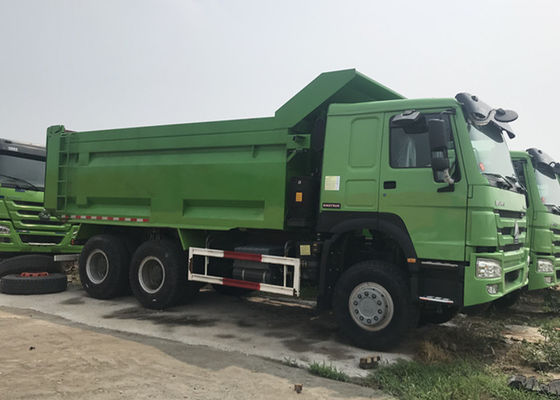

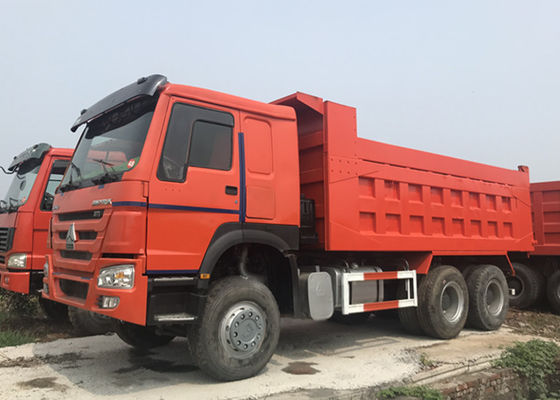

Sinotruk HOWO 10 12 Wheeler Refurbished Tipper Dump Truck

Duży Obraz : Sinotruk HOWO 10 12 Wheeler Refurbished Tipper Dump Truck

Szczegóły Produktu:

Miejsce pochodzenia:	SUIZHOU, HUBEI
Nazwa handlowa:	CLW
Orzecznictwo:	ISO9001, CCC, BV, SGS
Numer modelu:	CLW20210707

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	Negotiated
Szczegóły pakowania:	Nagi lub woskowany przed wysyłką
Czas dostawy:	30-35 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Nadwozie wywrotki:	Stal węglowa	Nazwa produktu:	Używana lub nowa wywrotka, wywrotka
Typ napędu:	6X4 10 KOŁA 10 KOŁA lub 8X4	Model napędu:	Kierownica po lewej stronie lub RHD
Pojemność ładowania:	20 ton, 25 ton, 30 ton, 20T, 25T. 30T	Marka ciężarówek:	Sinotruk/Sinotruck HOWO, shacman, FAW, FOTON, jac
Typ zakładki:	Wywrót do przodu lub wywrót środkowy	Hydrauliczny:	HYVA, czyli chińska marka, stan dobry
Stan:	UŻYWANE, odnowione LUB CAŁKOWICIE NOWE DLA OPCJI
Podkreślić:	Refurbished Tipper Dump Truck , 12 Wheeler Tipper Dump Truck , Sinotruk HOWO Refurbished Truck

Sinotruk HOWO 10 wheel 12 wheeler Used Refurbished Tipper Dump Truck

Product Description

Excellent Condition
Low Price
Good Quality
1. Based on STR technology
2. Cabin:Four point s suspension HOWO Cabin with spring and air shock absorber
4. Engine:371HP WD615 STR engine ( from 290hp - 420 hp you can chose )
Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
5. Front axle: HF9 STEYR technology front steering axle
6. Rear axle: AC16 16ton STEYR technology double reduction hub reductor driving axle
7. Steering: ZF8098, driver sit at the left hand side
8. Loading capacity: More than 30ton
9. Designed for tough road condition especially for African countries
10. Punctual delivery time
11. Excellent spare parts supply for after-sales service.

A dump truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. Also known as the dump truck. It consists of a car chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device.
The compartment of the dump truck is tilted backwards and laterally tilted. The piston rod movement is controlled by the operating system, and the backward tilting is more common. The piston rod is pushed to tilt the carriage, and a few are tilted in two directions.

Shape classification
Single-bridge dump truck, double-bridge dump truck, flat-head dump truck, pointed dump truck, front four rear eight dump trucks, double-bridge semi-trailer dump trucks, three-bridge semi-trailer dump trucks.
Variety classification

product Specification for Sinotruk HOWO 10 wheel 12 wheeler Used Refurbished Tipper Dump Truck

MAIN DESCRIPTION
Overall Dimension	8545mm2496mm3350mm (LWH)
Payload	25-30ton		Curb Weight	12500kg
Front Overhang	1500mm		Rear Overhang	1870mm
Wheelbase	3825mm +1350mm
CHASSIS
Chassis Brand	SINOTRUK HOWO
Driving Type	6x4
Cab	HW76, left hand drive, air-conditioner, one bed
Engine and Power	Brand: SINOTRUK, diesel engine, 336hp (247kw), 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard
Steering	ZF8098, hydraulic steering with power assistance
Transmission	HW15710, 10 forward speeds and 2 reverse
Clutch	Model: 430, diaphragm clutch
Front Axle	HF9, load capacity 9 ton, drum brake
Rear Axle	HC16 tandem axle, load capacity 13000kg x2, ratio 5.73
Tire	12.00-20, 11units including 1 spare tire
CARGO BODY
Inside Dimension		5600mm2300mm1500mm(LWH)
Hydraulic Cylinder		Ventral T-type lift system
Steel sheet thickness		Floor 8mm, side wall 6mm
Tailgate		One-piece tailgate with upper articulation, safety lock system

Tips to build your truck body
Transport medium	Floor(mm)	Side(mm)
Soil or Stone	8	4
Construction Waste	10	6
Big Ore	12	8
Coal	6	4
clay	8	4
Grain or Chemical fertilizer	6	4
